Selected Projects

A curated set of mechanical design, simulation, drawings, and prototyping work. From idea to production-ready deliverables.

Request A Quote

CAD Models

Differential – Exploded View

Exploded view highlighting gear set, shafts and seals for documentation.

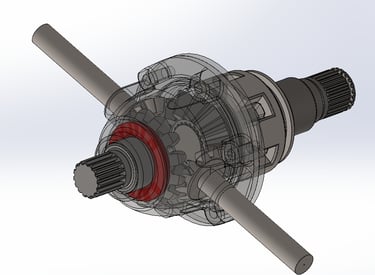

Differential Gear Assembly

Complete differential assembly with transparent housing to show internals.

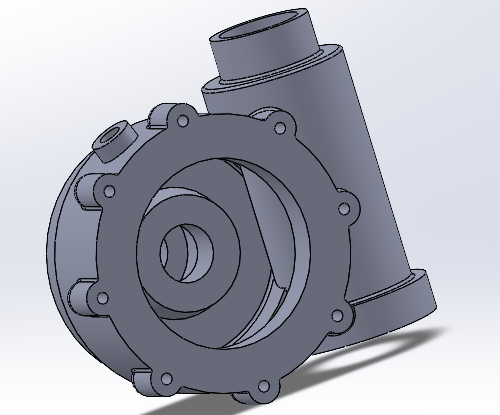

Pump/Gear Housing

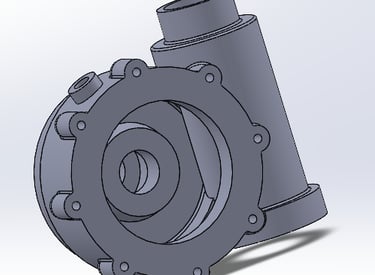

Two-part pump/gear volute and inlet body, ready for machining and assembly checks.

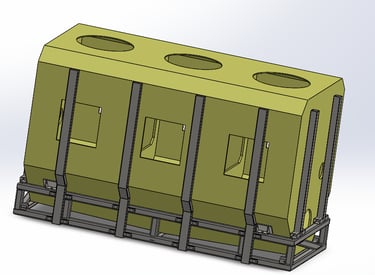

Large Enclosure on Transport Frame

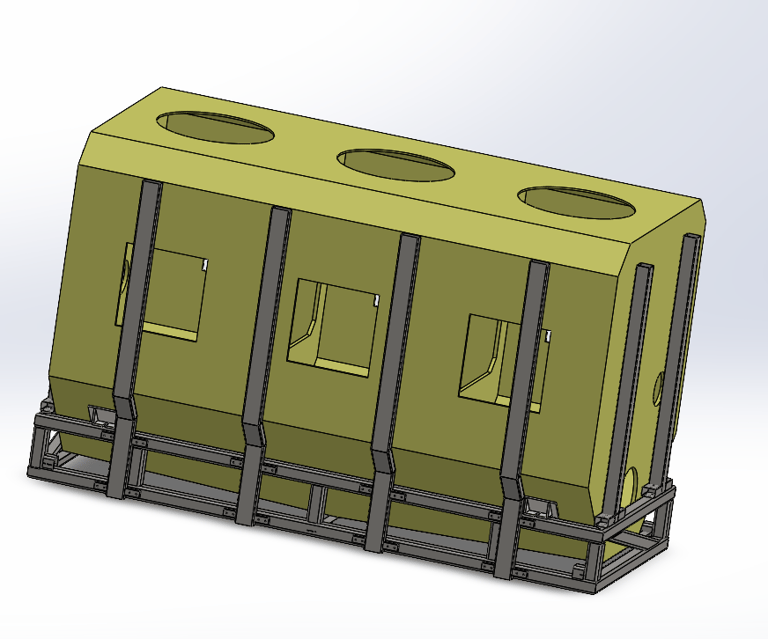

Sheet-metal enclosure mounted on reinforced transport frame; focus on weldment design.

Simulations

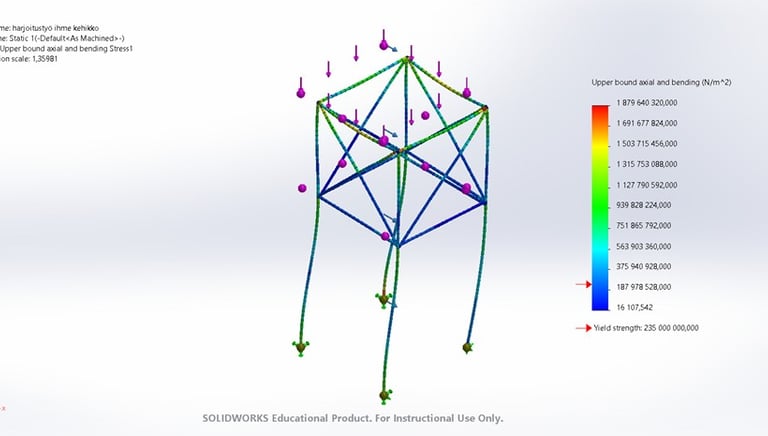

Truss Structure Analysis

Global stiffness and load path study for lightweight space-frame.

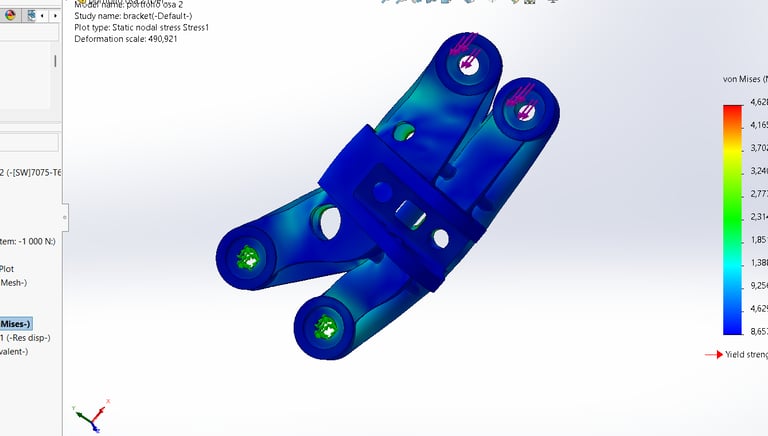

Bracket Stress Simulation

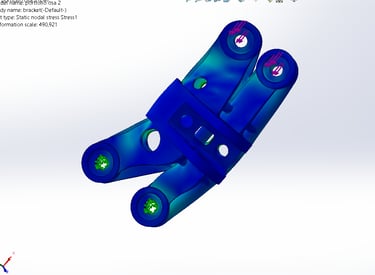

Static stress evaluation to verify critical fillets and mounting points.

Landing Gear – Fatigue Life

Fatigue life estimation under cyclic loading to guide material/thickness choices.

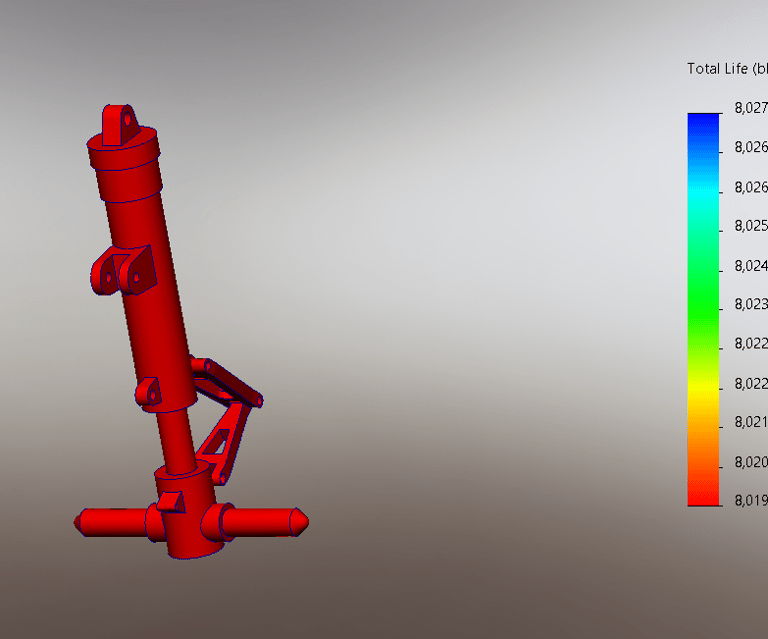

Landing Gear – Displacement

Displacement map to assess deflection at handle and mounts.

Drawings

Dumbbell Rack – Drawing Set

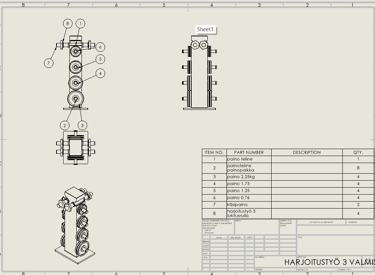

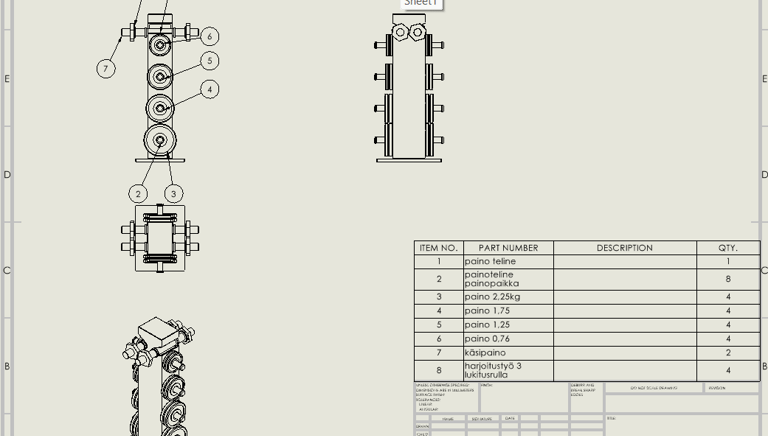

Multi-view layout and BOM for fabrication and assembly checks.

Tow Hitch – Assembly Drawing

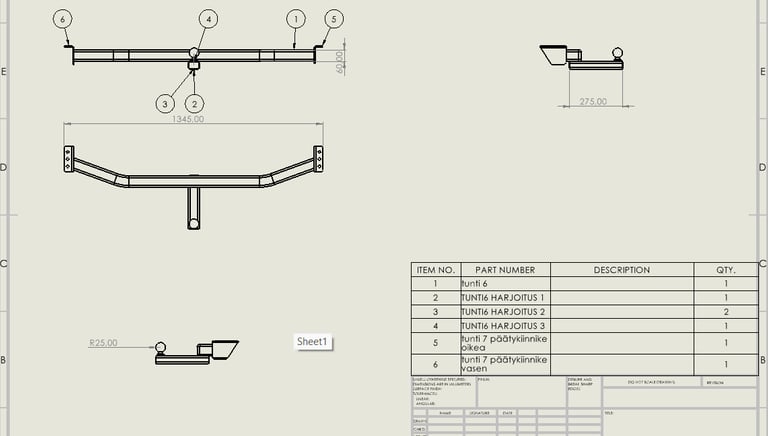

Assembly views with overall dimensions and BOM for manufacturing.

Forming Tool – Detail Drawing

Detailed plate component with manufacturing dimensions and views.

Prototypes & Fixtures

Exhaust Fixture Concept

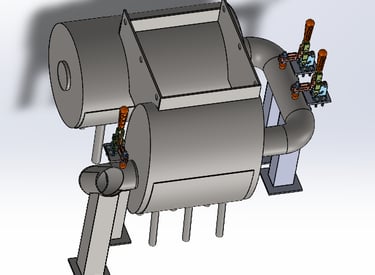

Clamping fixture concept around exhaust parts to support operations.

3D Printing – Prototype Bracket

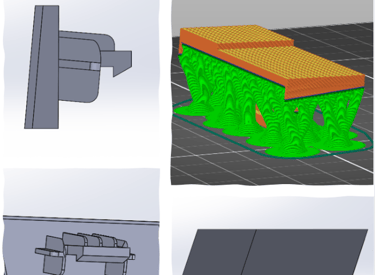

Print setup with supports; quick iteration for fit & function tests.
